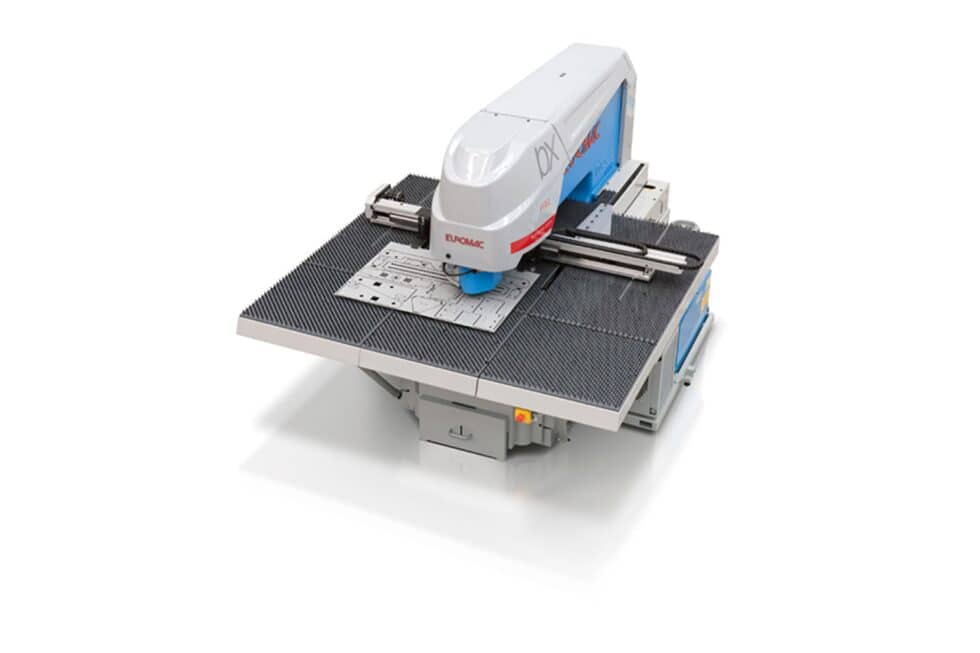

EUROMAC BX/ZX/MBX/MTX
Euromac’s machine portfolio consists of single-head, six-head, and twelve-head machines that cover everything from piecework shop production to high-performance production using universal tools. See for yourself: the MTX Flex 6 offers 60 different tools, 30 of which can be rotated 360°, providing 6D full-size stations with a single simple configuration – much more than most tasks require. Combined with fully automatic clamp positioning (patented as standard on ZX, MBX, MTX, STX 6 and 12 models), punching is made significantly easier. Send us your parts and we will provide you with a punching feasibility study with guaranteed production times.
FLEX hybrid system
Which system is better, electric or hydraulic? Why not take advantage of the best from both? Our unique hybrid system, which is called Flex (2 patents), combines the power of hydraulics with the precision of electric control. Low energy consumption with only 8.5 kW and an average of only 4.5 kW during punching. In addition to the ability to set the upper and lower dead center, the Flex Hybrid System allows you to set the number of strokes, acceleration or deceleration of the ram, and time delay for each tool. The biggest advantage of EUROMAC punching machines is the flexibility in the use of tools.
FX bend electric press brake and automated cell
The FX bend 1023 stands out thanks to its innovative features and high precision. The design and attention to detail are combined with high quality standards with a single goal: to offer you a machine that is modern, productive, and easy to use. Bending length 1020 mm and maximum bending force 230 kN.
A design that exceeds your goals. This is how the FX Bend 1547 was born. A solution that meets your performance requirements combines the features of the FX Bend series with higher performance and increased bending length of up to 1530 mm with a force of 470 kN.
- Direct drive motor with bottom displacement
- Maximum efficiency and reliability (no unnecessary gears or moving parts), maximum acceleration (low inertia), strength and precision (no deflection of the screw when force is applied)
- Speed of 200 mm/s and deceleration only at the point of contact
- Thanks to its direct drive, short screw and ram push system, the FX bend quickly reaches its maximum speed and slows down to a safe bending speed only when the punch approaches the material
